Trailer

网站首页 / PRODUCTS / Trailer

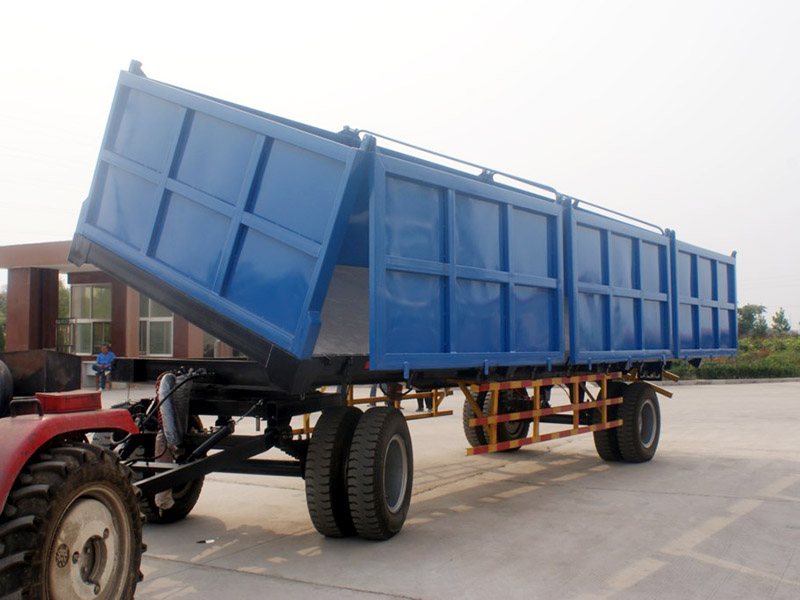

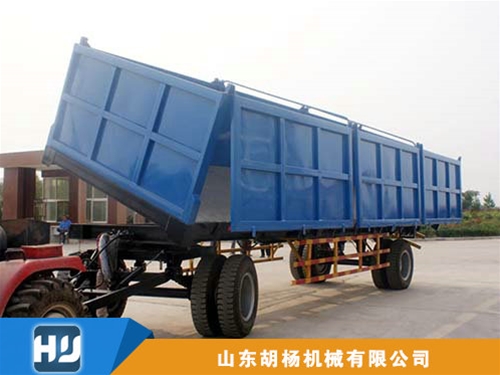

名称：20T

详细信息

型号	7CX-20
车厢尺寸（mm） Carriage dimension Lengthwidthheight	800025001300
外型尺寸（mm） Overall dimensions Lengthwidthheight	980026202800
额定载重（kg） Rated weight	20000
自重（kg） Dead weight	5800
轮胎型号/轮数 Specification of tire	9.00-20/8
刹车形式Brake	气刹air brake
卸料形式 Tipping pattern	左右自卸
配套动力（HP） Matched power	80-100

Suitable for a variety of operating environments;

Unloading mode: three-way, self-unloading, high loading efficiency;

Steering form: Centerless turntable.

Shock absorption form: elastic bow plate.

Traction form: tripod live traction.

Self-discharge configuration: double oil cylinders.

Rear taillight, left and right guardrail. Complete vehicle wiring harness.

Air connection type: air pipe quick joint.

Circuit connection type: screw seven - core wire quick plug.

Oil connection type: quick change joint.

Surface treatment: large shot blasting machine to eliminate welding stress, rust removal, in addition to oxide skin, anti-rust paint, finish paint, paint processing. Welding process: CO2 tooling welding.

Transport mode: bulk transport, flexible packaging.
