Trailer

网站首页 / PRODUCTS / Trailer

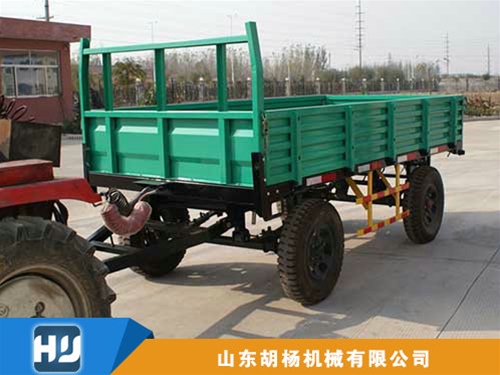

名称：4T standard trailer

详细信息

model	7CX-4
（mm） Carriage dimension Lengthwidthheight	38001700460
（mm） Overall dimensions Lengthwidthheight	525018002150
（kg） Rated weight	4000
（kg） Dead weight	1450
Specification of tire/Qty	7.50-16/4
Brake	Air brake
Tipping pattern	left and right tip
（HP） Matched power	35-40

Suitable for long distance transporting heavy goods under different working conditions; with complete configuration, smooth running, beautiful, durable, high loading efficiency. Matching power 30-100hp. Steering form: unintentional turning,

Damping form: elastic bow plate. Traction form: tripod live traction. Self-unloading configuration: double oil cylinder. Rear taillight, left and right guardrail. Vehicle wiring harness. Air way connection: air pipe quick joint. Circuit connection: screw seven - core wire quick plug. Oil connection: quick change joint. Surface treatment: large shot blasting machine to eliminate broken contact force, rust removal,

Oxide skin, antirust paint, top paint, paint treatment.

Welding process: CO2 tooling welding.

Mode of transportation: bulk transportation, flexible packing.
