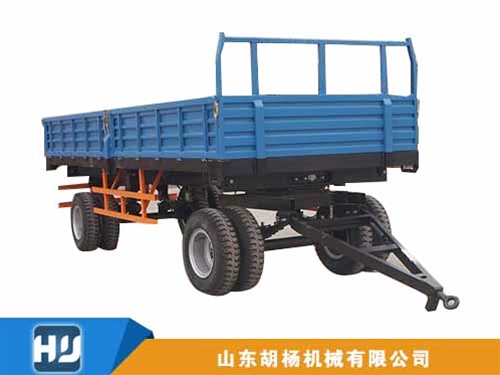

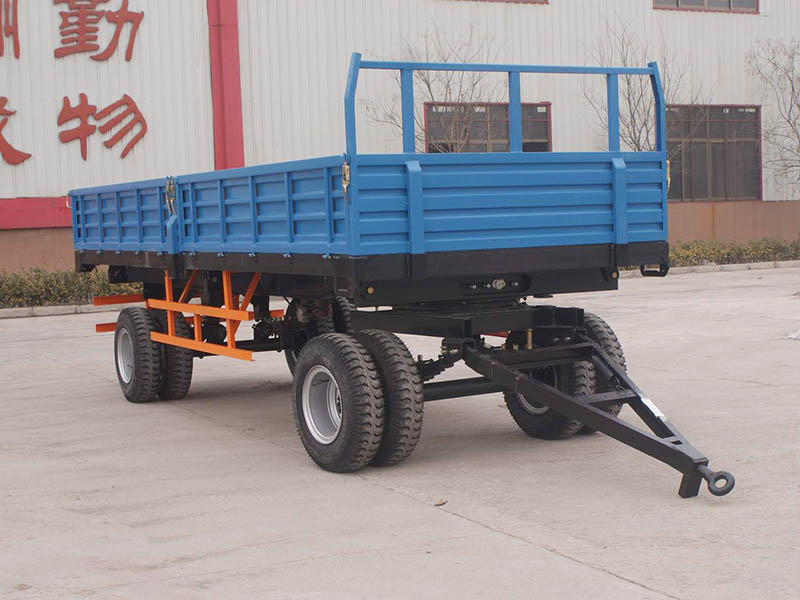

Trailer
10T

名称:10T

详细信息

型号

7CX-10

车厢尺寸(mm)
     Carriage dimension Length*width*height

6000*2150*550

外型尺寸(mm)
     Overall dimensions Length*width*height

7800*2250*2650

额定载重(kg)
     Rated weight

10000

自重(kg)
     Dead weight

3000

轮胎型号/轮数
     Specification of tire

8.25-16/8

刹车形式Brake

air brake

卸料形式
     Tipping pattern

left and right dump

配套动力(HP)
     Matched power

80-90

Suitable for a variety of working condition;

Unloading : three-way, self-unloading, high loading efficiency;

Steering : Centerless turntable.

Shock absorption : elastic bow plate.

Traction : tripod live traction.

Self-unloading : double oil cylinders.

Lighting:Rear taillight, left and right guardrail.  Complete vehicle wiring harness.

Air connection : air pipe quick joint.

Circuit connection : screw seven - core wire quick plug.

Oil connection : quick change joint.

Surface treatment: large shot blasting machine to eliminate welding stress, rust removal, in addition to oxide skin, anti-rust paint, finish paint, paint processing.  Welding process: CO2 tooling welding.
